Sports Field Lighting Standards & Layouts: Complete Guide for 2026

Key Takeaways

• ANSI/IES RP-6 defines the foot-candle, uniformity, and glare targets for every sport and competition class.
• Lighting design varies by sport. Field size, ball speed, pole height, and fixture aiming all determine whether a system meets the IES lighting standard on the playing surface.
• A custom photometric layout is not optional. Generic plans lead to uneven coverage, ordinance violations, and rework.

A sports field running lights at half the prescribed foot-candles is not just poorly lit. It poses a safety hazard, is a compliance violation, and becomes more problematic the longer it persists. Sports field lighting standards have been set by the IES to avoid this scenario. These standards depend on a variety of factors: sport type, competition level, and presence of a camera in the case of broadcast.

We will look at the 2026 ANSI/IES RP-6 sports lighting standards for the most popular sports, as well as considerations and decision-making involved in achieving those levels on the field. If you are considering the construction of a new venue, upgrading an outdated lighting system, or want to understand why your current setup fails, start here.

Understanding IES Lighting Standards

Illuminating Engineering Society (IES) is the body that establishes the benchmark in the North American sports field lighting industry. The IES sports lighting standards prescribe the level of illumination on the playing surface, the uniformity of lighting, and the ways of managing glare and color rendering, based on a variety of sport and competition specifics.

Four parameters do the bulk of the work in the IES standards:

Maintained illuminance levels, expressed in foot-candles (fc) in the U.S. and lux internationally, establish the minimal amount of lighting required in a field. These values depend on the competition class, ranging from recreational to broadcast. While the total light output from the fixture is measured in lumens, foot-candles measure the actual luminous flux received on the playing surface. Thus, a light fixture with high lumen output may fail to deliver the required foot-candles due to faulty optics, aiming, or improper pole height. This is crucial in the case of sports lighting, as foot-candles are what IES standards are all about.

Uniformity ratios measure the uniformity of lighting on the playing surface, since an average of 50 fc is of no consequence if the field is divided equally between 30 fc and 70 fc areas.

Glare control ensures the comfort of the players and spectators when they look up in search of the ball.

Color Rendering Index establishes the accuracy of colors perceived under lighting conditions, which is crucial for broadcast.

The 2026 ANSI/IES RP-6 continues to be the benchmark in sports field lighting design. Any facility designing a new installation or upgrading an existing one should consider these standards.

Why Sports Lighting Standards Matter

Safety and Visibility

A poorly lit field is a danger to players. When foot-candles drop below the standard and uniformity is not maintained, it reduces players’ ability to track a fast-moving ball, referees cannot see some actions, and spectators struggle to follow the game. All of these are real problems that lead to accidents, complaints, and the inability to hold competitive events.

Energy and Cost Efficiency

Sports field lighting systems with LEDs have allowed reaching much higher foot-candle levels with significantly reduced energy requirements compared to old HID and metal halide lamps. Operational costs include much more than just utility bills. LEDs last for 50,000 to 100,000 hours, depending on the model, and therefore reduce the replacement cost, rent, and downtime associated with pole lifting.

For facilities operating lights 4 or 5 days a week, that savings alone can justify the expense of an LED lighting system.

Lighting Requirements Vary by Sport

The reason this guide separates standards by individual sports is that there is no such thing as the right level of foot-candles for any field. Lighting needs for a tennis court are different from those of a football field; the needs for a Class I broadcast baseball field are very different from those for a Class IV recreational soccer pitch. The field size, ball speed, player movements, and viewing distances are all relevant in design.

In the clip below from the sports lighting episode of our FSG Podcast, we explain how these standards apply to football, baseball, and tennis fields and why it is important.

What are the IES Light Level Standards by Sport?

The table below shows the recommended horizontal illuminance levels for the most common sports by the IES competition class.

Class I refers to professional and broadcast venues with at least 5,000 spectators; Class II – college and minor league fields with up to 5,000 spectators; Class III – high school competition fields with up to 2,000 spectators; Class IV – recreational facilities and training fields with no spectators.

All the values shown in the table are average maintained levels on the playing surface, which means that these values have to be provided regardless of the degradation of fixtures or accumulation of dirt.

Sport & Area	Class I (Professional & Broadcast)	Class II (College & Minor League)	Class III (High School & Recreational)	Class IV (Training & Leisure)
Baseball / Softball (Outdoor)	100 fc	70 fc	50 fc	30 fc
Football (Outdoor)	100 fc	50 fc	30 fc	20 fc
Soccer (Outdoor)	75 fc	50 fc	30 fc	20 fc
Tennis (Outdoor)	100 fc	75 fc	50 fc	30 fc
Pickleball (Outdoor)	75 fc	50 fc	30 fc	20 fc
Basketball (Outdoor)	100 fc	75 fc	50 fc	30 fc
Basketball (Indoor)	100 fc	75 fc	50 fc	30 fc
Ice Hockey (Indoor)	100 fc	70 fc	50 fc	30 fc
Track & Field (Outdoor)	50 fc	30 fc	20 fc	10 fc
Field Hockey (Outdoor)	100 fc	70 fc	50 fc	30 fc
Lacrosse (Outdoor)	70 fc	50 fc	30 fc	20 fc
Fitness Centers / Gyms (Indoor)	50–75 fc	—	—	30–50 fc

Sport-Specific Lighting Design and Layouts

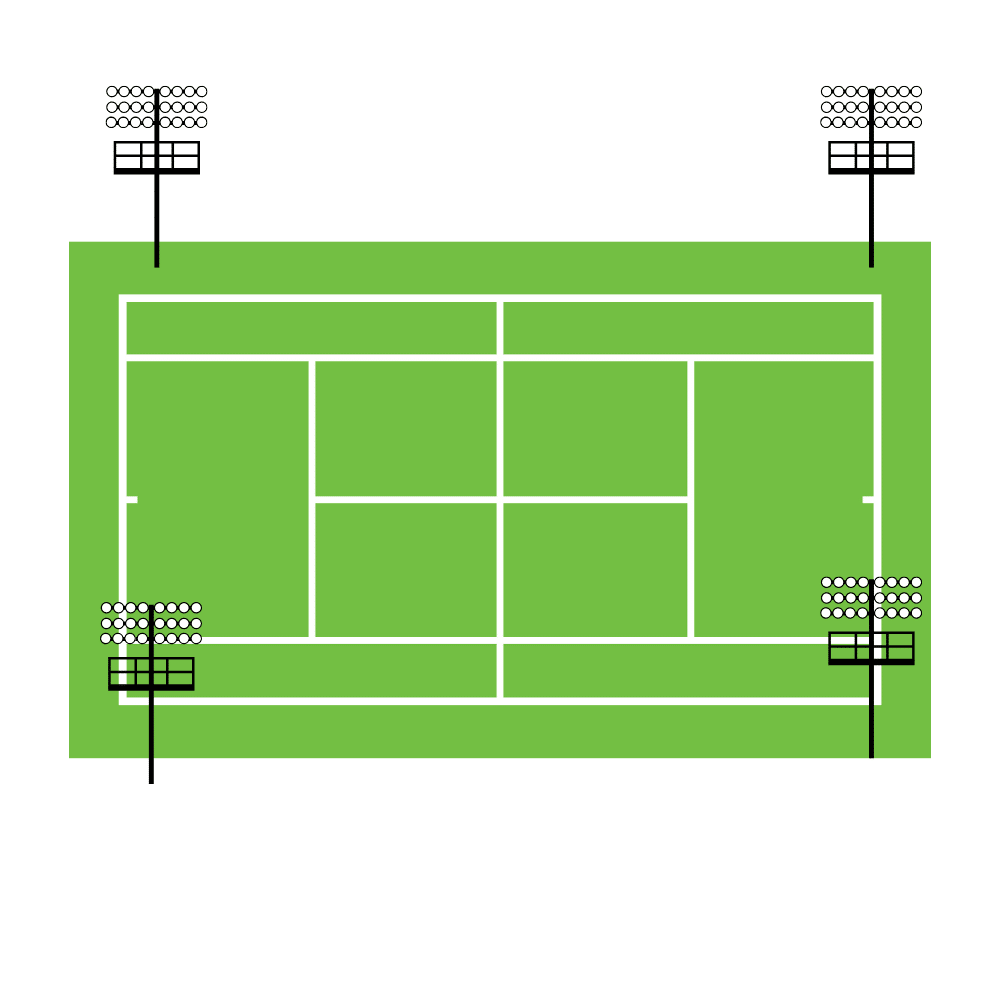

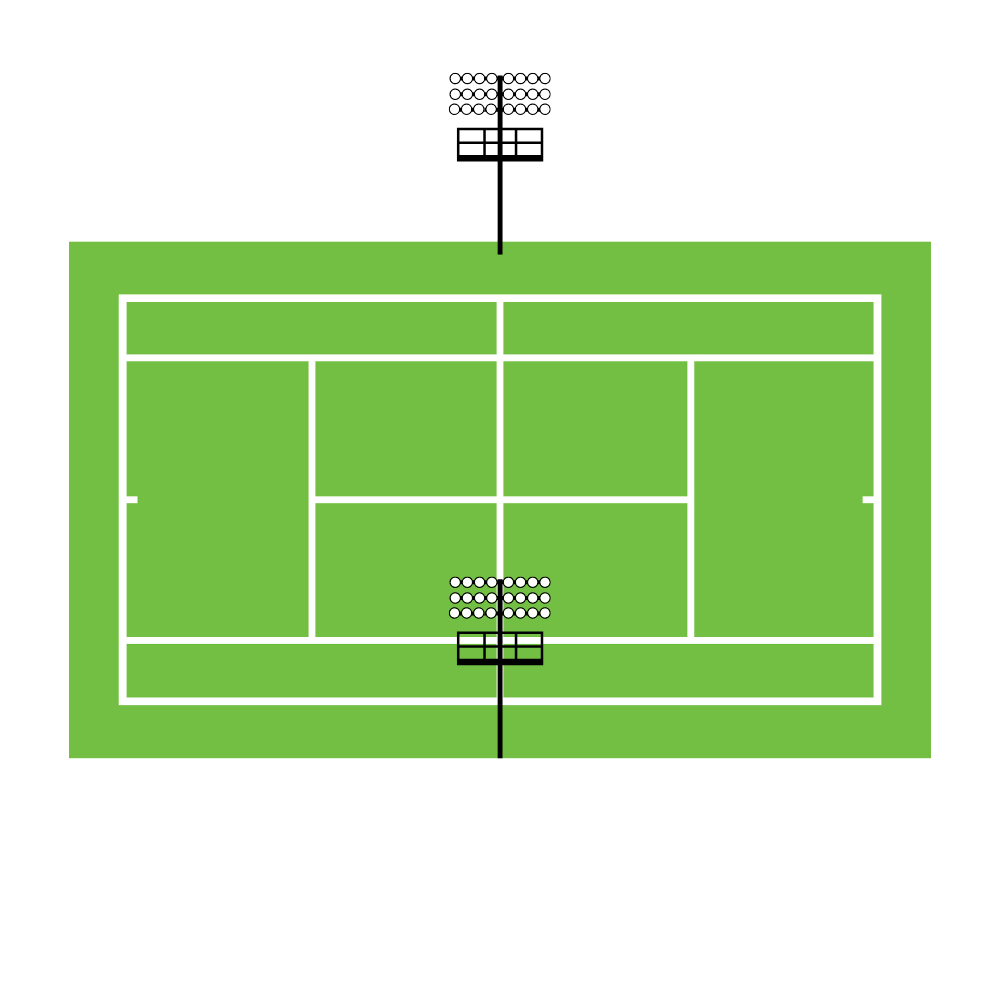

Tennis Court Lighting

The tricky factor for tennis court lighting lies in the fact that the ball is small, fast, and travels at low altitude across the relatively compact field. The players have to track the ball against the sky, the net, and the opposing playing surface, while being subjected to the overhead light sources, which can create a glare at the most inappropriate moment. The result is that controlling glare and proper fixture shielding are as important as reaching the necessary foot-candles.

Recreational tennis courts are supposed to reach 30 to 50 fc, while the competitive and professional tennis fields need 75 fc or more. The height of poles ranges from 20 to 40 feet, and the poles are placed outside the playing area, usually 2 to 8, depending on the number of courts. In the case of a multi-court complex, it is important to have coordinated photometric design of all the courts; otherwise, there is a risk of spill and hot spots between adjacent courts.

Proximity to residential areas is another aspect that has to be considered in tennis court lighting design. Many fields are located inside neighborhoods, country clubs, or parks, where excessive light spillage is undesirable. The fixtures with cutoff optics and proper shielding help to avoid light spillage and protect the neighbors from excessive glare.

During FSG’s LED upgrade of the 26-court tennis facility at Kingwood Country Club from the metal halide to the LED, minimizing the light spill across that many adjacent courts, while maintaining even lighting on each one of them, became the key task of the design.

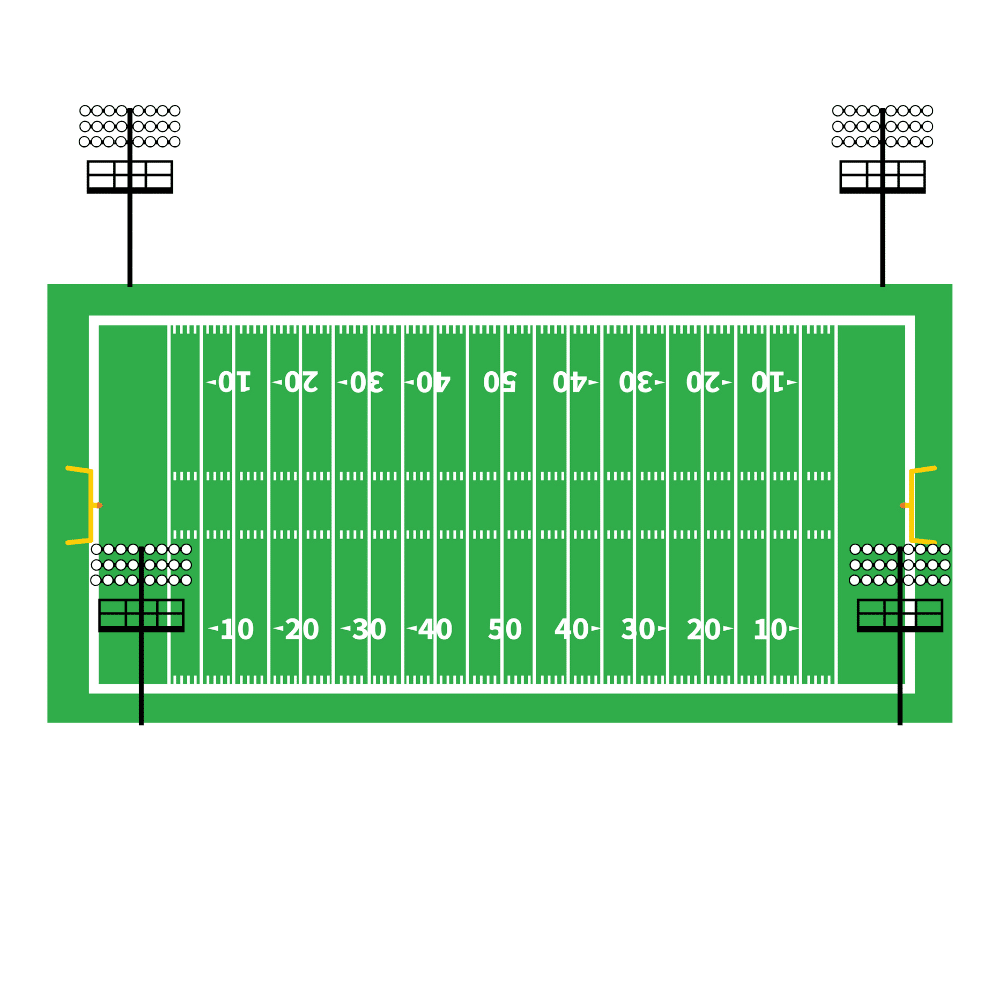

Football Field Lighting Standards

Football fields are large. The sport is fast, and action happens everywhere on the field. The players have to track the ball overhead on punts and passes, but also read blocks and tackles at ground level. This means that the lighting should provide horizontal illuminance for the whole 100 yards (plus the end zones) and sufficient vertical illuminance for recognizing the facial features of the players and tracking the ball overhead.

The non-broadcast and recreational football fields should achieve 20 to 50 fc, while competitive, college, and professional fields should achieve 50 to 100 fc. The poles are placed at a height of 50 to 70 feet, with 4 to 6 poles on each side of the field. Correct aiming is crucial in the end zones, where shadows created by goal posts and other structures make it hard to track the ball. The asymmetrical lighting and cross-aiming of the poles help to eliminate the shadows.

At the professional level, the requirements for lighting become much more stringent but, at the same time, important. FSG became the designer and installer of the LED lighting at NRG Stadium, the home of the Houston Texans, the first NFL team to play under LED lights.

FSG also performed the electrical and field lighting design for Tomball ISD’s regional stadium, including broadcast system, scoreboards, and distributed power, which accommodates thousands of spectators at the high school level.

Soccer Field Lighting Standards

Like football, one of the biggest challenges with soccer field lighting is the sheer size of the field. An official soccer pitch can reach up to 120 yards in length and 80 yards in width. This means that the beam spread from each fixture has to be considerably bigger than in the case of a football or tennis court. Reaching the proper uniformity, when such lighting is required, on such a large area without creating dark zones on the sidelines and in the goal boxes requires proper pole positioning and fixture selection.

The non-broadcast and recreational soccer fields are required to reach 20 to 30 fc, while competitive and professional ones need to be 50 to 75 fc or more. The poles are placed at a height of 30 to 75 feet and 6 to 8 feet on the sidelines. Special attention should be paid to the goal areas and corners during the design stage, since these are the places where players, goalkeepers, and referees need the best visibility in the most critical moments of the game.

Since soccer fields often are parts of larger multi-purpose sports facilities, the soccer field lighting design also has to accommodate the adjacent fields, parking lots, and neighboring properties. Controlling the spill and glare becomes a shared concern during simultaneous lighting of multiple sports fields, and photometric design that considers individual fields separately will cause problems that will be expensive to solve after the installation.

Baseball Field Lighting Standards

Baseball field lighting is one of the most complex, since the field itself is not uniform. The infield needs higher light levels at the pitcher’s mound and batter’s box, where split-second recognition of the ball speed and trajectory can decide the whole play. Outfield requires bright, even lighting so the fielders can track the ball against the dark sky without losing it in dark shadows or a glare zone. The lighting design that serves both areas from the same poles requires asymmetric lighting and cross-aiming.

The non-broadcast and recreational baseball fields require 20 to 50 fc, while competitive and professional baseball fields require 70 to 100 fc. The pole configurations usually include 6 to 8 poles with a higher concentration of fixtures in the infield. The pole height varies significantly between the sports due to the fact that the interaction between stands, backstop, and outfield fence creates sightline constraints that differ from field to field.

The fly ball becomes the ultimate test for the baseball field lighting design. A ball hit straight up goes through the brightest point of the light cone and disappears in the glare if the fixtures are not aimed and shielded properly. The cross-aiming of the poles on the opposite sides of the field solves this problem by providing several angles from which the ball can be seen.

At Salmon Park in Sachse, Texas, the FSG’s LED upgrade achieved 62% energy savings while solving these lighting challenges in the infield and outfield.

Pickleball Court Lighting Standards

Pickleball has become one of the fastest-growing sports in the US in recent years, and most of the growth has happened in urban and residential areas. This creates additional constraints for the field lighting design. Courts are compact, usually 20 by 44 feet, which creates relatively small but precise lighting requirements. Even a slight overshoot of the light from a single fixture can light up the neighboring yard or the roadway and create a violation of the local ordinances.

For recreational play, a pickleball field has to achieve 20 to 30 fc, while competitive and tournament-level courts require 50 to 75 fc. The pole height is smaller than in most sports, 18 to 25 feet, and fixtures have to use cutoff optics and shielding to comply with local dark sky ordinances. The IES standards include special provisions for pickleball, due to its fast development and design requirements of a small court footprint.

When Brookhaven Country Club was getting ready to host the 2023 USA Pickleball National Championships, the Dallas lighting team at FSG helped with the turnkey electrical and lighting upgrade, meeting Professional Pickleball Association requirements. The project included relocation of the existing electrical infrastructure in order to optimize the lighting layout and provide uniform competition-quality lighting for the courts.

Basketball & Gymnasium Lighting Standards

Indoor basketball courts and gymnasiums create a different set of challenges for lighting design compared to the outdoor fields. The ceiling height, wall color, and reflectivity influence the light behavior in the space. For example, a white wall behind the basket bounces the light into players’ eyes, while a dark-painted and low-ceilinged gym loses the light and makes it hard to reach required foot-candle levels.

The recreational play requires 30 to 50 fc, while the competitive and broadcast-quality venues need 75 to 100 fc. Fixtures are ceiling or truss-mounted, and lighting design has to avoid direct glare to players’ eyes during upward-looking plays like rebounds, tip-offs, and shot contests. High CRI lighting becomes more relevant indoors, compared to most outdoor sports, as an enclosed environment highlights the color inaccuracies, and broadcast cameras in televised games show them right away.

Multi-functionality becomes another characteristic of gymnasium lighting. School and municipal gyms host basketball, volleyball, assemblies, graduation ceremonies, and various events on the same floor. A lighting system that provides good lighting for one of these purposes is useless for others.

Modern LED fixtures with 0-to-100% dimming allow for adjusting lighting levels for practice, competition, and non-athletic events from a single control panel, while older systems were either fully on or fully off.

Fitness Center Lighting Standards

Fitness centers present a mix of activities taking place in the same space, and all of them require different lighting conditions. The cardio area with treadmills and bikes should have moderate, even illumination to avoid glare on the screens, while the free weights floor requires brighter overhead lighting for seeing the plates, bars, and mirrors. Group fitness rooms for yoga or cycling classes might require dimming capability depending on the activity.

The general requirement for the foot-candles on the fitness center lighting ranges from 30 to 75 fc, depending on the zones and activity, but the design challenge in this case is treating each zone separately and not flooding the whole area with uniform lighting. Indirect lighting, glare control, and dimming options make the space attractive for spending time. Wall-washing and accent lighting can also be used to separate the zones visually without using physical barriers.

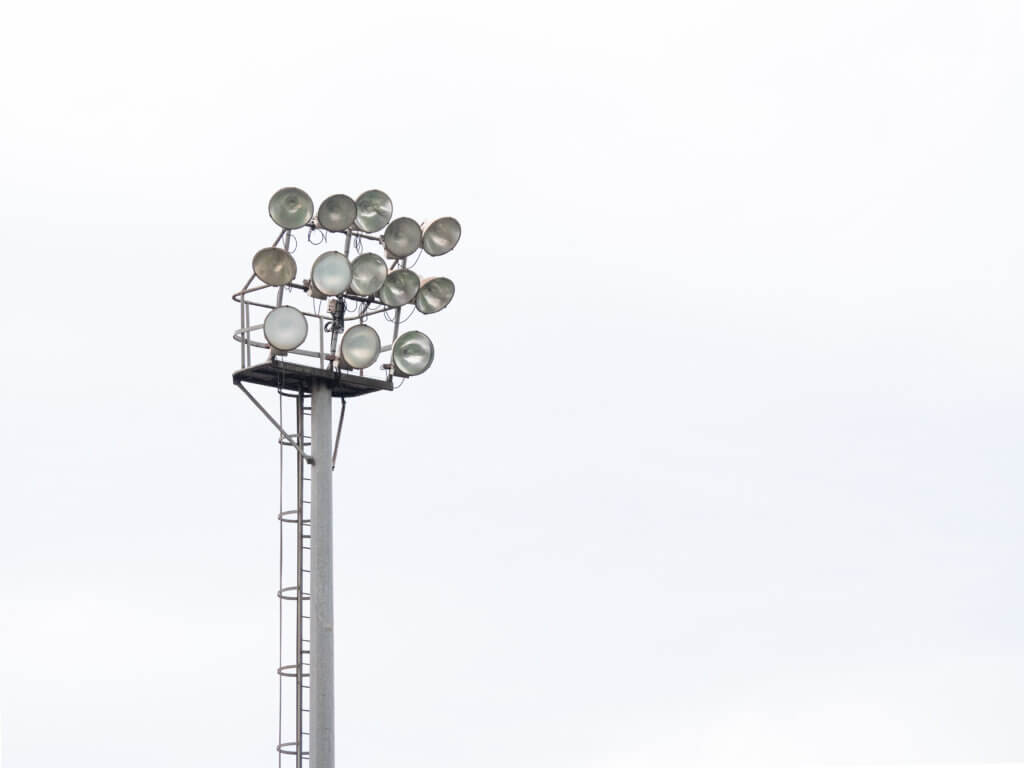

Pole Quantity, Height, and Placement

Pole placement is where the lighting design is connected to the reality of the situation. The requirements of foot-candles and uniformity only make sense if poles are high enough, are properly spaced, and are located to illuminate the playing surface without interfering with the game or spectator experience.

The height of the pole influences the light distribution and shadow control. A taller pole makes a wider beam angle and more uniform lighting on the field, but at the same time increases the risk of light spill onto the neighboring properties without proper shielding. A shorter pole focuses light on a smaller area, which usually requires more fixtures to maintain the uniformity at the same level.

The standard pole height varies from 20 to 70 feet for the lower competition classes and 50 to 100 feet or more for college and professional venues. The proper height of the pole for a particular field is defined by the setback distance, fixture output, beam spread, and the required uniformity ratio.

The distance between poles usually ranges from 60 to 100 feet and is adjusted depending on the fixture optics and field width. Poles are to be located along the sidelines or behind the baselines to stay out of the line of play. For sports like baseball and softball, where the field geometry is non-rectangular, pole positioning becomes more flexible and requires more coordination of the infield and outfield zones.

Twin-mount fixtures and cross-aiming strategies are used for eliminating shadows and improving light distribution, especially in the center of the field, where single-source lighting tends to degrade. A proper sports lighting design always models these parameters in a photometric layout prior to installation of the poles, as moving the poles after installation becomes one of the most expensive mistakes in the field.

Indoor vs. Outdoor Sports Lighting

Both indoor and outdoor sports field lighting strive to provide the same performance, but deal with different environments. An indoor facility has to consider ceiling height, wall reflectivity, HVAC ductwork, and other mechanical obstructions influencing the light movement in the space.

The high-gloss floor of the gym absorbs the light differently from the matte rubber one, and dark-painted ceilings absorb lumens, which would be bounced back into the room by the white ceiling. All these parameters require indoor photometric modeling.

Outdoor installations are subject to completely different constraints. The fixtures have to have IP65 or higher rating for resistance to rain, wind, and thermal stress.

The dark-sky compliance and the beam cutoff are mandatory for many municipalities for the avoidance of light pollution, and structures like grandstands, press boxes, and scoreboards can create shadows or reflective surfaces, which have to be taken into account. The wind load on the tall poles becomes another structural parameter.

Smart Lighting Controls and Automation

Modern facilities hardly operate the lights on one level all the time. Smart controls give the facility manager the option to schedule lighting output depending on the event time and its character, to dim and increase lighting levels in particular zones, and to control the whole system remotely using mobile apps or facility management software. Warm-up zone does not require the same foot-candle level as the main court during the competition, and an unoccupied field does not require to be illuminated at all.

Zoning becomes another valuable tool with smart controls, allowing to illuminate only particular fields or courts, which are in use at a certain time. The dimming feature helps to reduce energy consumption during the low activity period. For multi-purpose facilities hosting everything from Friday night football to Saturday morning youth leagues, it translates directly into savings on utility costs.

The Long-Lasting Benefits of LED Sports Field Lights

LED sports fixtures are rated for 50,000 to 100,000 hours, depending on the manufacturer, driver, and heat dissipation quality. Practically, the facility running the lights 4 to 5 days a week, with 4 hours per day operation, can expect 15 to 25 years of operation from the quality LED fixture before the output becomes unacceptable.

That is a significant improvement over the metal halide lamps, which fail in 10,000 to 15,000 hours and degrade way before that.

The maintenance of the LED fixtures is not an issue, but it becomes another. Lens cleaning, mount inspection, and driver replacement become main service procedures, while metal halides require routine group relamping.

Installation of the surge protection in any outdoor fixture installation is worth the money, as a single lightning strike can ruin several drivers. Weather-resistant housing is recommended for the protection of fixtures from the elements of nature.

Common Pitfalls to Avoid

The most frequent mistakes in sports field lighting design are not about choosing the wrong fixture. These mistakes are about improper planning. Overlighting of the field becomes a waste of energy and creates uncomfortable glare for players and spectators.

Poor uniformity, caused by improper aiming or pole height mismatch, results in dark spots in the areas of greatest importance for visibility. Low light levels in the goal areas, end zones, and center courts become apparent immediately during the competitions and are hard to correct without re-aiming or additional fixtures.

The local lighting ordinances are the other pitfall that often surprises facility operators. Many municipalities have strict regulations regarding light trespass, spill, and uplight in residential zones. A photometric plan, which ignores those restrictions, leads to a fine, forced shutdown of the nighttime activities or costly changes to the fixtures post-installation.

The solution to these problems is to pay attention to ordinances during the design process, not after the lights are on.

Choosing the Right Project Partner

Every sports lighting project has a unique combination of the sport, competition level, field geometry, facility restrictions, and budget. Therefore, a custom photometric layout is indispensable for any project of this type. The photometric model allows verification of whether the proposed design will meet the requirements for foot-candle levels, uniformity, glare, and compliance with local ordinances.

The absence of a photometric model or reliance on the standard layouts obtained from manufacturers’ catalogs is a sure way to uneven coverage, upset neighbors, and the need for rework of the installation.

A lighting designer with access to professional photometric tools, such as AGi32, can accommodate the facility-specific parameters, which are ignored in the standard layouts, such as setback distance, interference with adjacent fields, existing electrical infrastructure, and available beam spreads of the chosen fixtures.

If you are designing a new facility, upgrading an outdated system, or troubleshooting a problem with your field lighting, the next step is a discussion with a specialist experienced in this field.

Schedule a consultation with FSG to speak to a lighting specialist today.
